Kapalua Bridge

Kapalua Adventure Course, Maui, HI

Click on any image to go back to the Kapalua Bridge Specifications Page

Construction Images , May-July 2008



photo Carroll Vogel

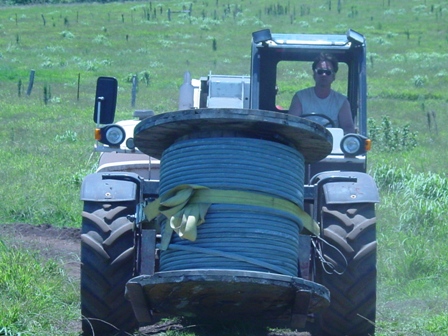

Ken Gilman delivers a mainline spool over rough terrain.





photo Carroll Vogel

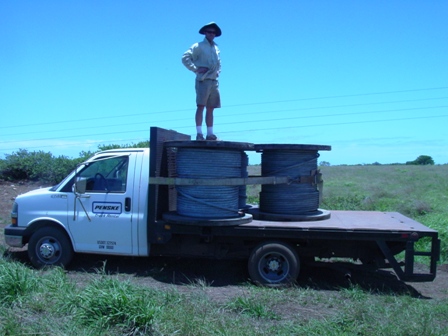

Gabe Newton hauls the other three by truck.



photo Carroll Vogel

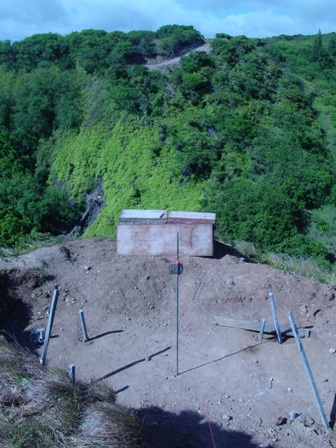

South piles in the ground.





photo Marty Walz

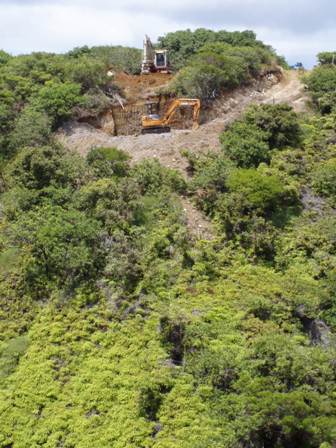

Excavators at north abutment.



photo Gabe Newton

Sunset from the bridge site.





photo Carroll Vogel

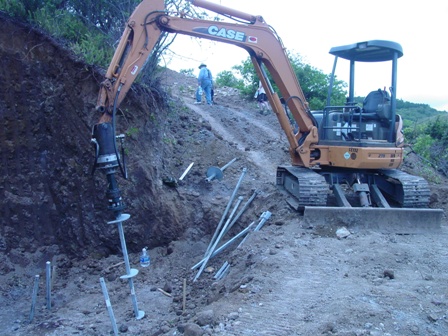

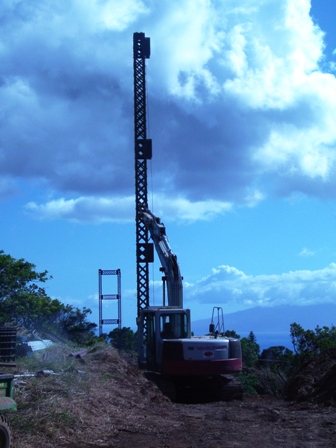

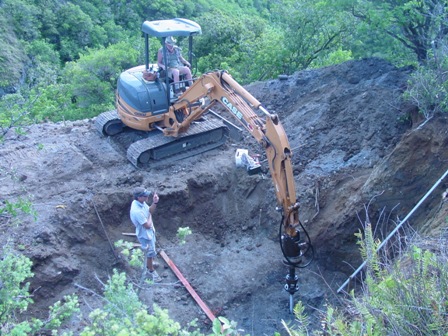

North abutment: screwing in helical piles with torque motor.



photo Aaron Nelson

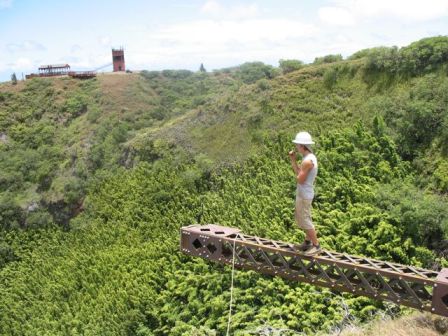

Carroll Vogel hanging out on the edge.





photo Carroll Vogel

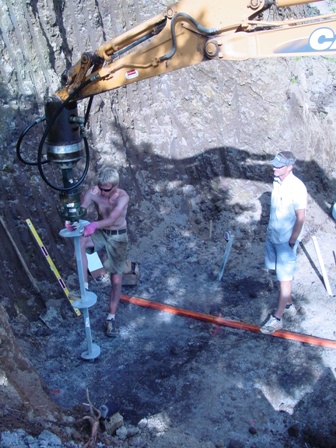

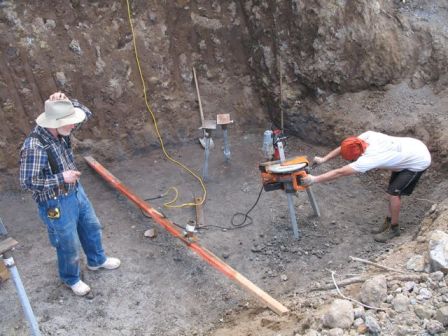

Aaron Nelson with geo-technical inspector Rick Cooper; starting a pile.



photo Gabe Newton

Robert Mitton and Steve Howell cut the pile tops to design elevation.





photo Carroll Vogel

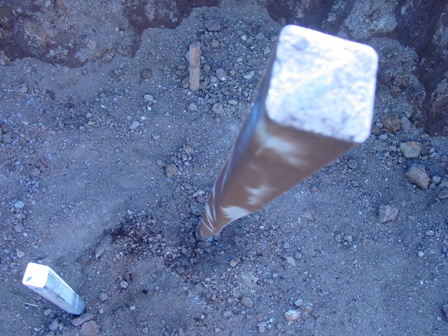

Helical pile after installation at 10,000 ft pounds.



photo Carroll Vogel

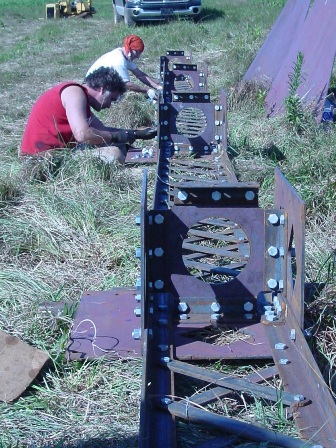

Ken and Steve assemble the first tower leg.





photo Carroll Vogel

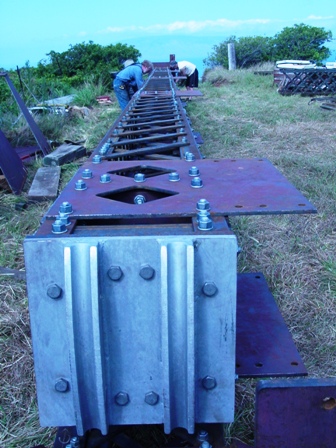

Robert and Steve assemble number two.



photo Carroll Vogel

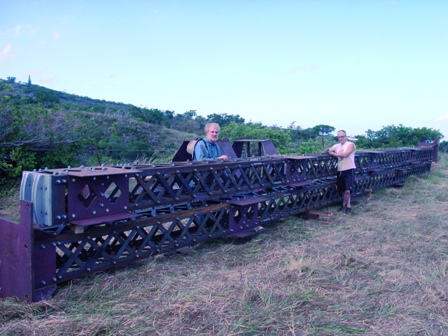

Robert and Steve show their work: Two complete north tower legs.

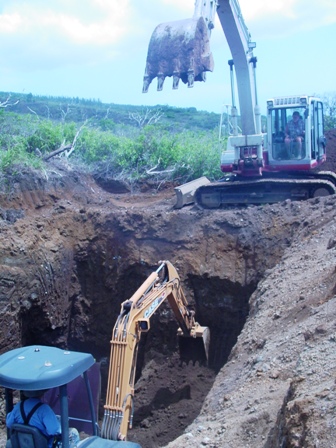

Robert and Carroll tag team the south anchor excavation.



photo Carroll Vogel

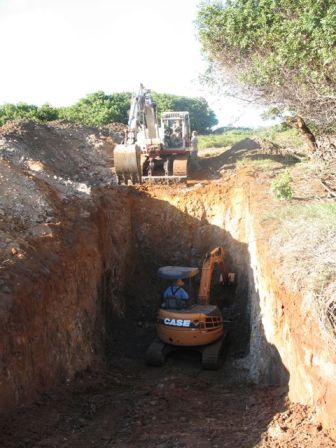

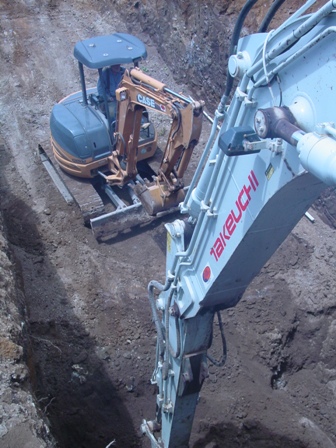

View down in the hole from big excavator.





photo Gabe Newton

Carroll and Robert form a bucket brigade on north side.



photo Carroll Vogel

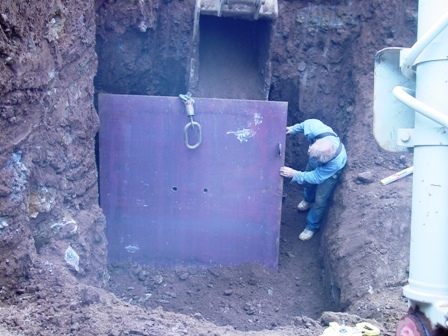

Robert checks the anchor face angle as Carroll adjusts it with the bucket.





photo Carroll Vogel

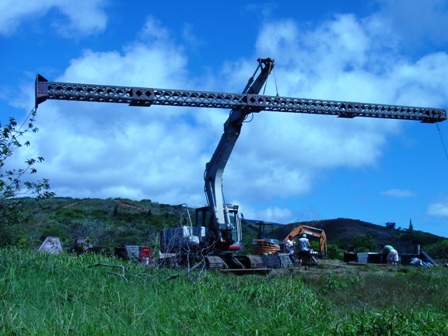

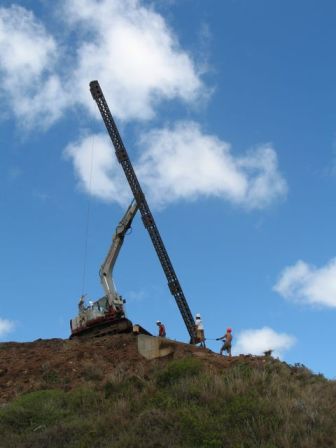

Unorthodox crane: Test lift of a tower leg with the excavator (sans bucket).



photo Gabe Newton

Mary Pat Mitton moves forms to the north abutment.





photo Carroll Vogel

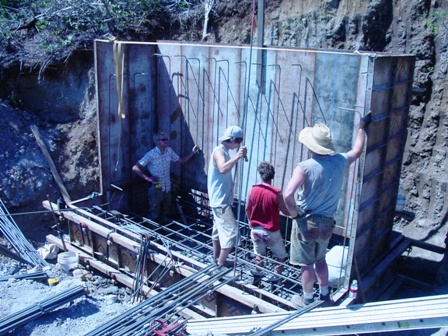

North abutment: Aaron, Austin Thompson, Ken and Marty Walz tie rebar.



photo Carroll Vogel

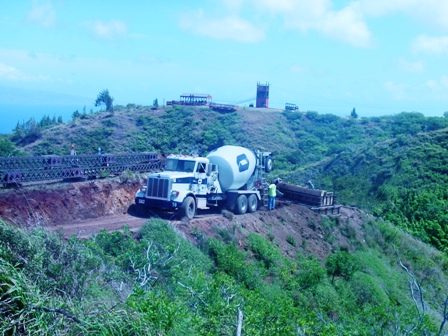

The Hawaiian Cement truck backs to the south abutment.





photo Carroll Vogel

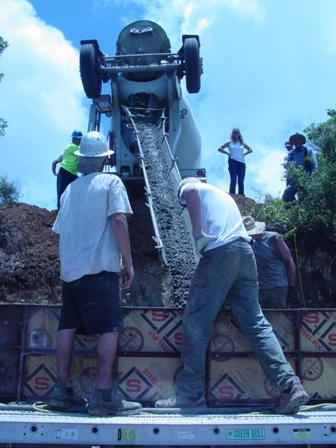

Austin and Aaron direct concrete into the north abutment.



photo Carroll Vogel

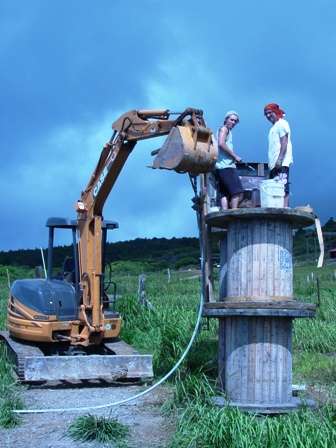

Austin and Steve prep the mainlines for socketing.



photo Gabe Newton

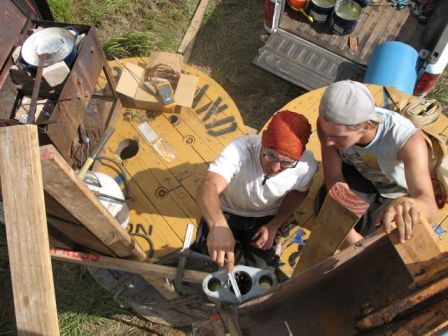

Steve and Austin level the bridge bowl prior to pouring molten zinc.



photo Steve Howell

Marty challenges Austin for spool dominance.





photo Gabe Newton

Aaron on tag line: Tries to pull it alone.



photo Gabe Newton

Austin and tower leg number one.





photo Marty Walz

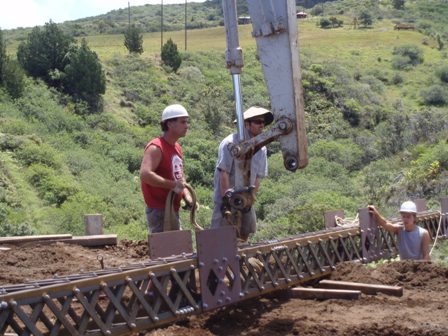

Ken and Gabe affix a tower leg to the excavator for lifting into position.



photo Gabe Newton

The tower raisers.





photo Marty Walz

Gabe packs some dirt over the anchors.



photo Carroll Vogel

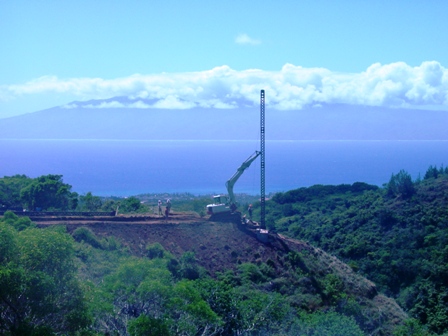

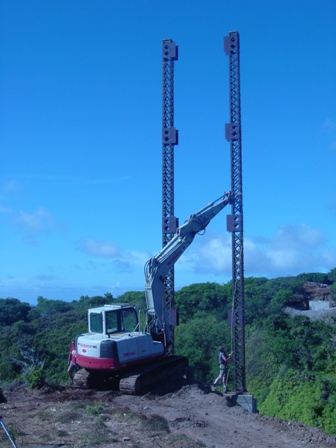

The excavator is dwarfed by the 52' tower.





photo Marty Walz

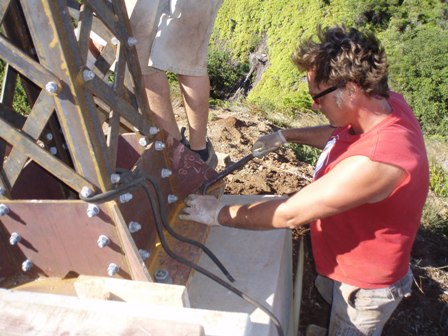

Ken hustles to get the tower base bolts snug.



photo Carroll Vogel

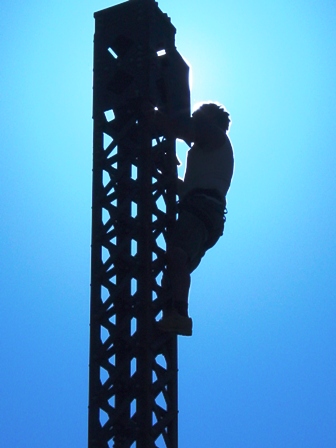

Ken up on the tower.





photo Carroll Vogel

Tower leg two goes up at the south abutment.



photo Marty Walz

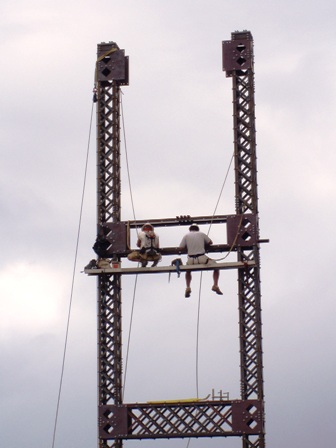

Steve and Ken assemble the tower horizontals.





photo Carroll Vogel

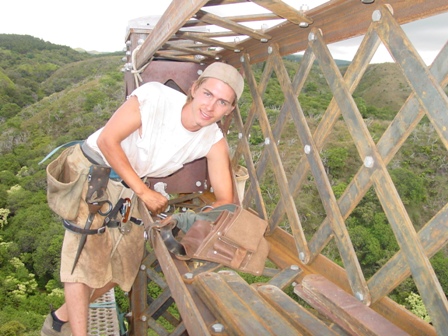

Austin strikes a pose during north tower top horizontal assembly.



photo Carroll Vogel

Tower leg three goes up, north abutment.

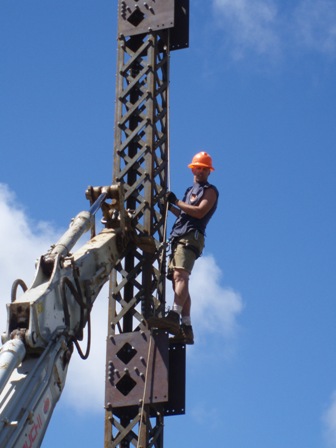

Marty releases the tower leg from the excavator.



photo Carroll Vogel

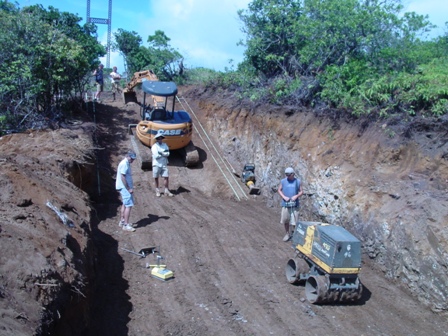

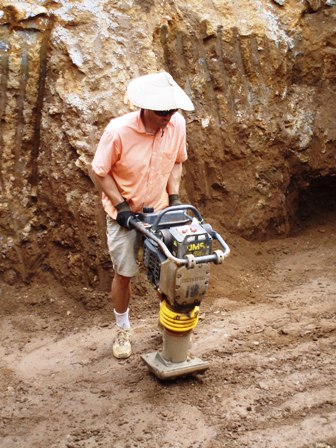

Compacting and testing of soil density at the south anchorage.

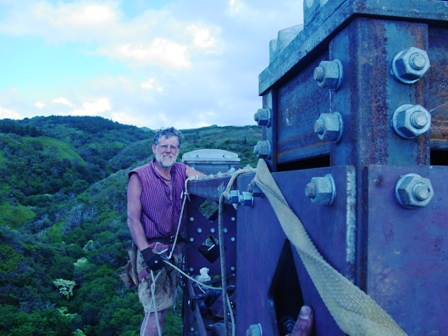

Carroll during work at the north tower top horizontal.



photo Steve Howell

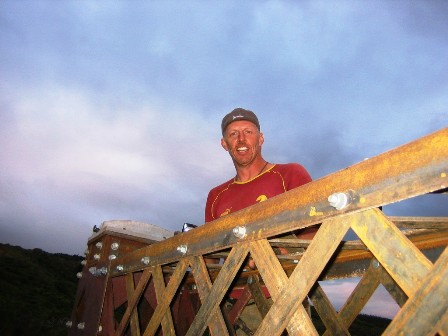

Marty on the completed tower.





photo Carroll Vogel

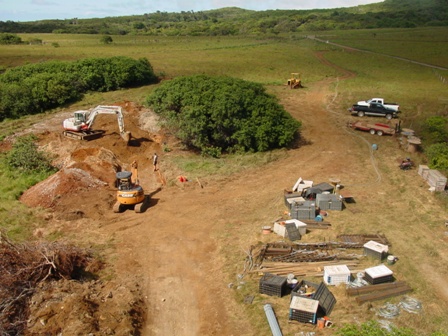

View of the job site from north tower top.



photo Carroll Vogel

Aaron with geo-tech Rick Cooper.





photo Carroll Vogel

Patrick O'Donnell and Steve ready the first mainline for pulling.

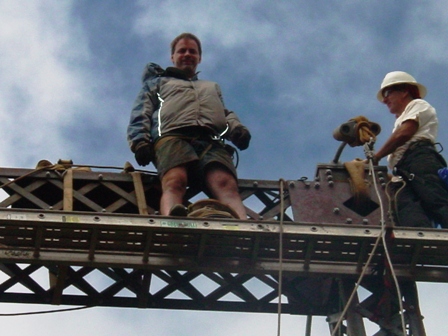

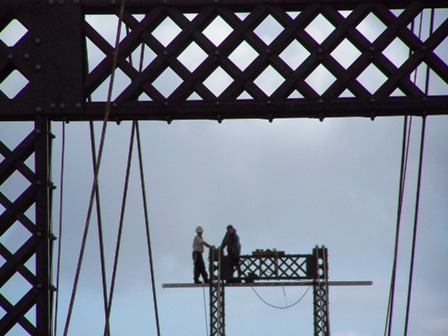

Steve and Patrick at tower top during mainline pull.





photo Carroll Vogel

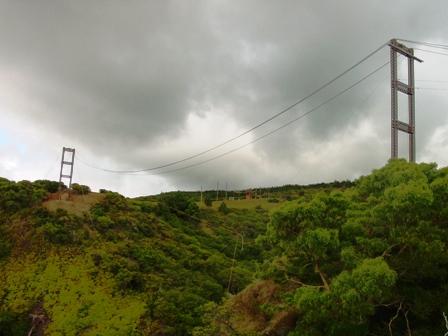

Three mainlines are across.

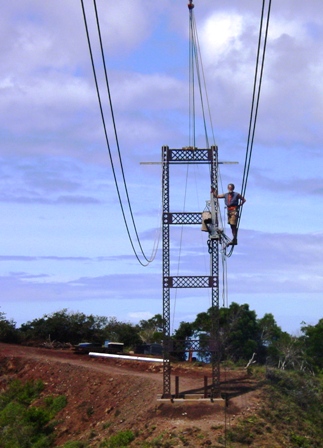

Carroll stands on mainlines, more than 200 feet up.





photo Gabe Newton

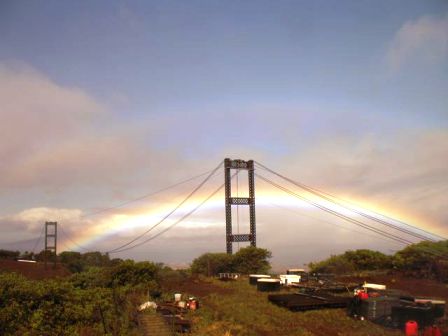

A double rainbow graces the bridge.



photo Gabe Newton

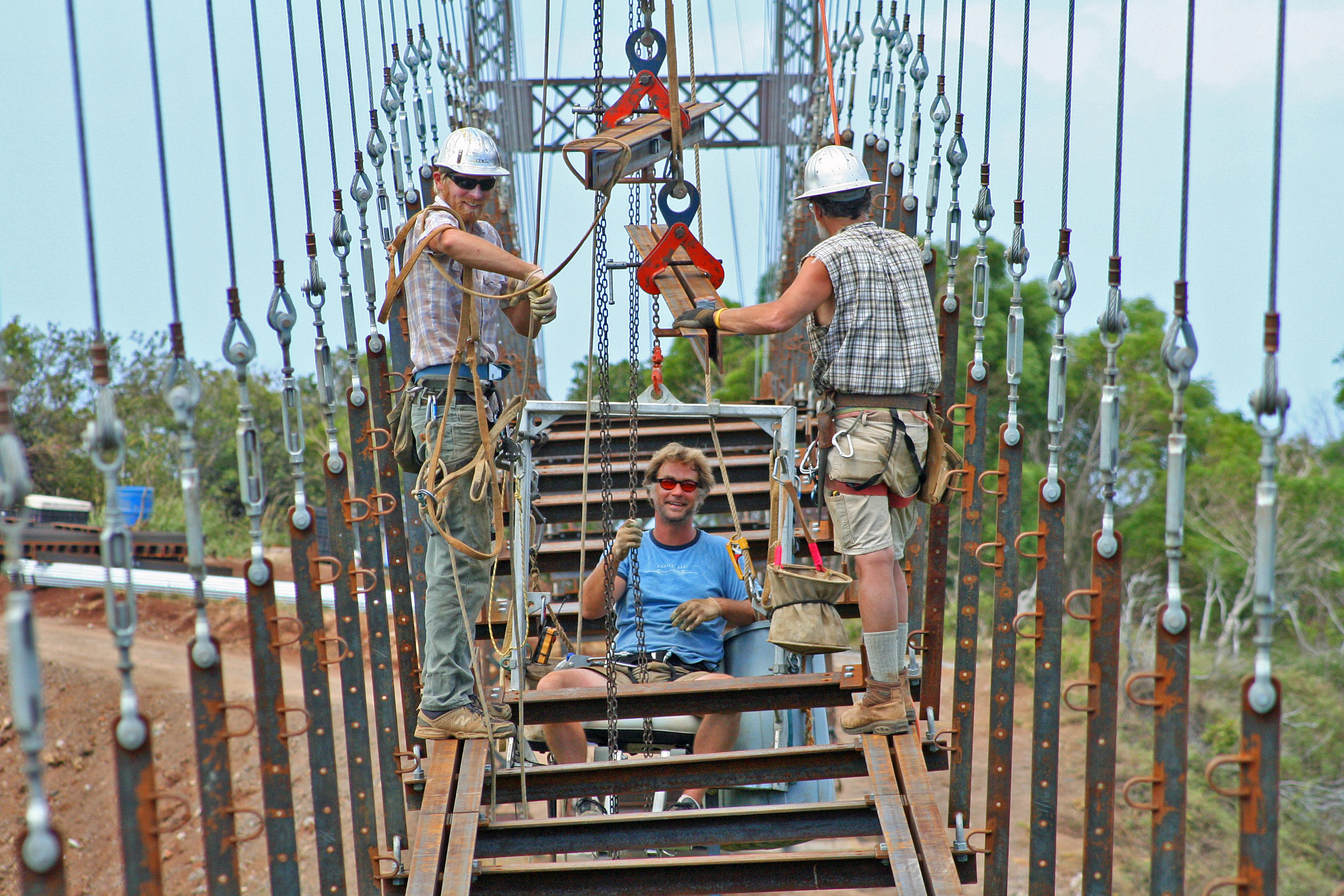

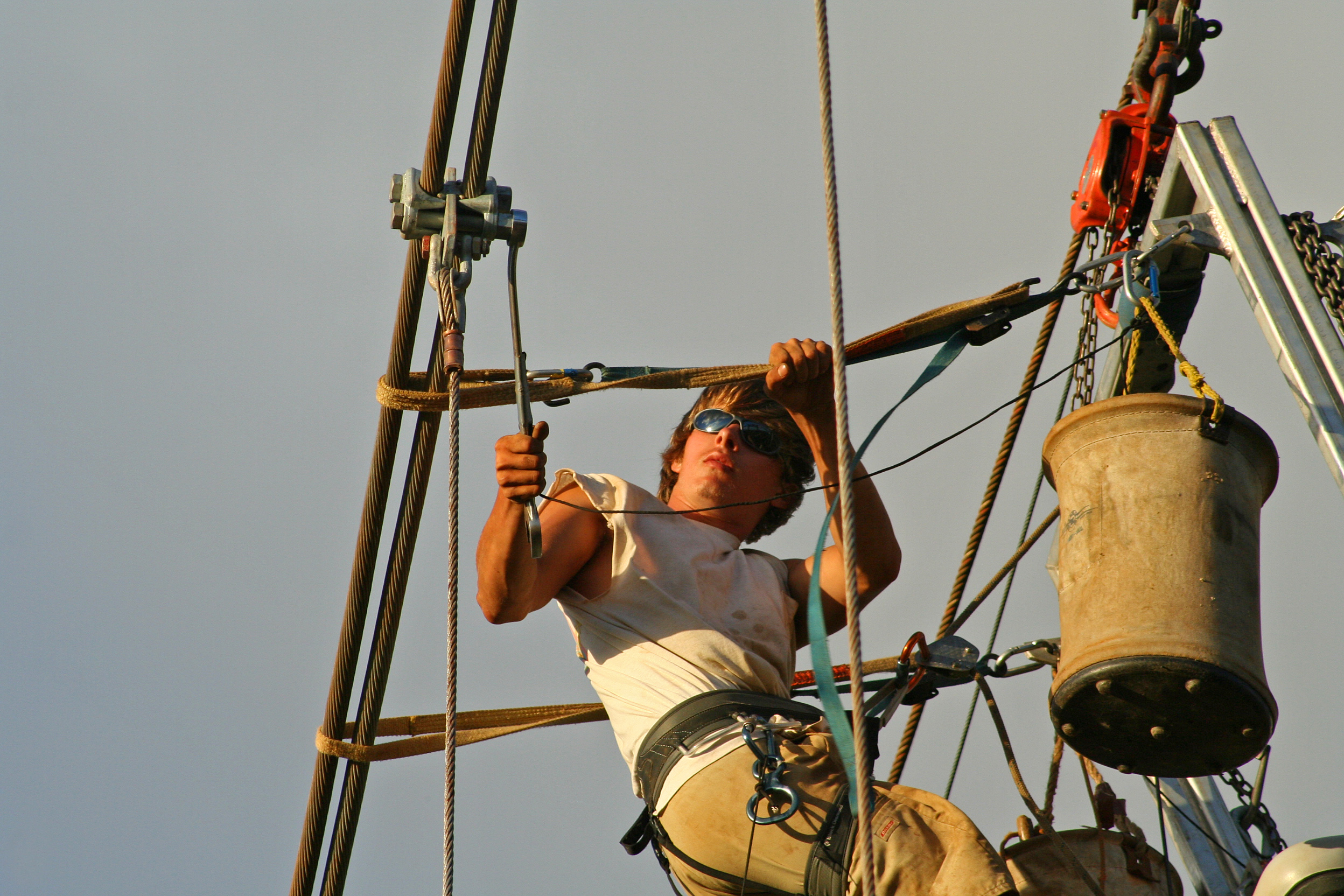

Bosun Chair work: Carroll installs the first suspender.





photo Gabe Newton

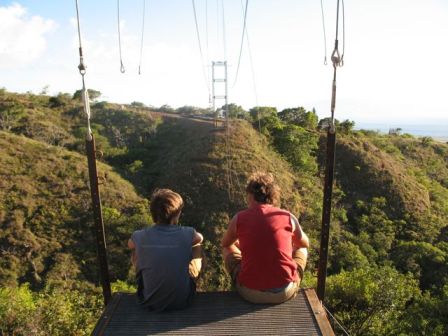

Austin and Ken enjoy the view from north abutment.



photo Carroll Vogel

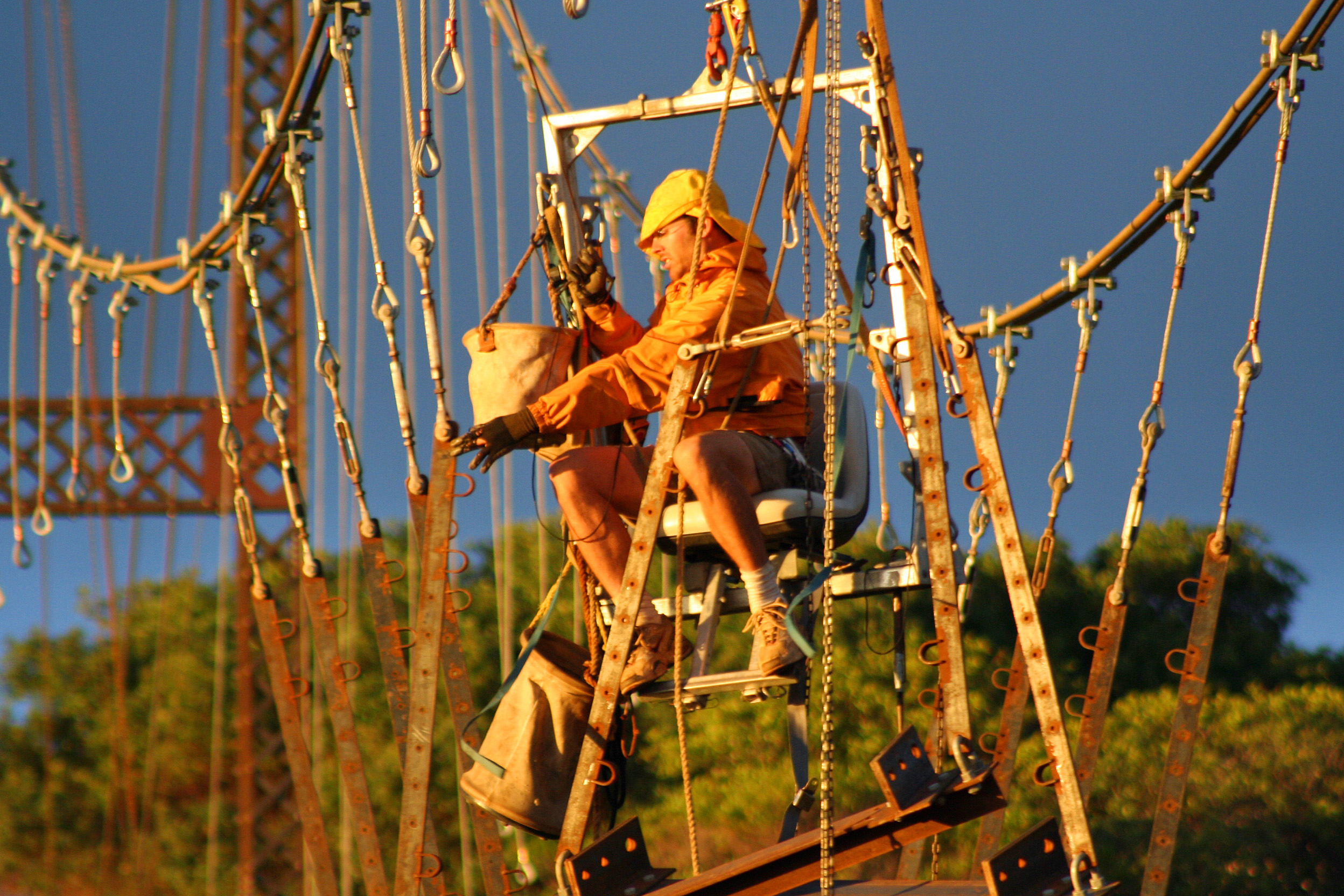

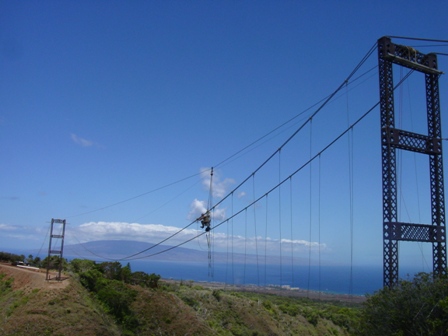

Austin installs suspenders.





photo Carroll Vogel

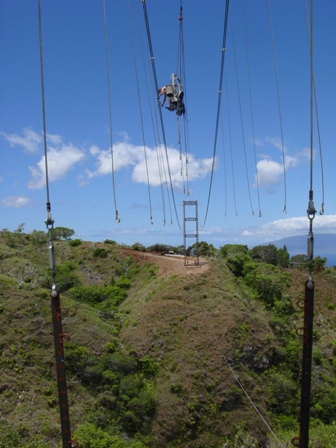

Austin installing suspenders.



photo Carroll Vogel

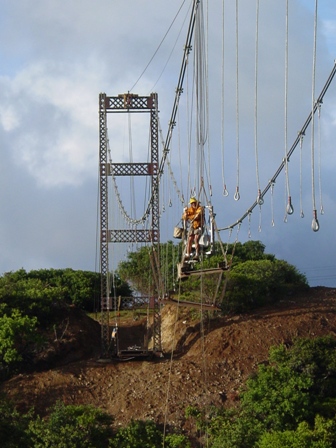

Gabe installs floor beams.





photo Gabe Newton

Carroll and Aaron assess the next step during skyline set up.



photo Gabe Newton

Lattice tower and the nature preserve above the bridge site.





photo Marty Walz

A sunset from the tower top.



photo Gabe Newton

Bridge enthusiast and photographer Patrick.





photo Carroll Vogel

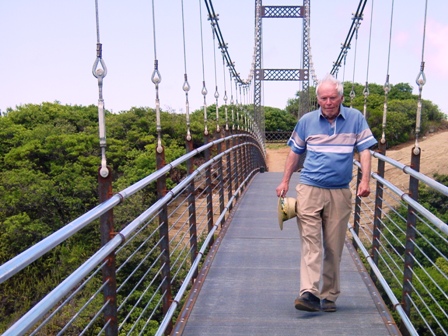

Chief engineer Al "Mike" Highberger, PE.



photo Carroll Vogel

Nearly finished.





photo Carroll Vogel

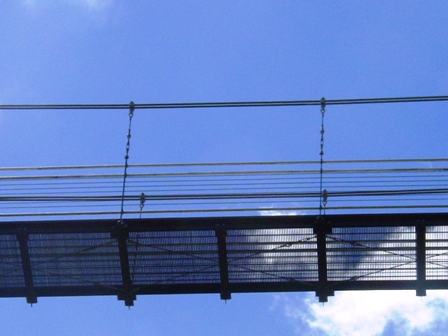

View through decking from below.



photo Carroll Vogel

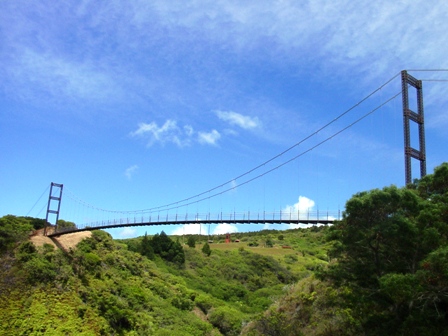

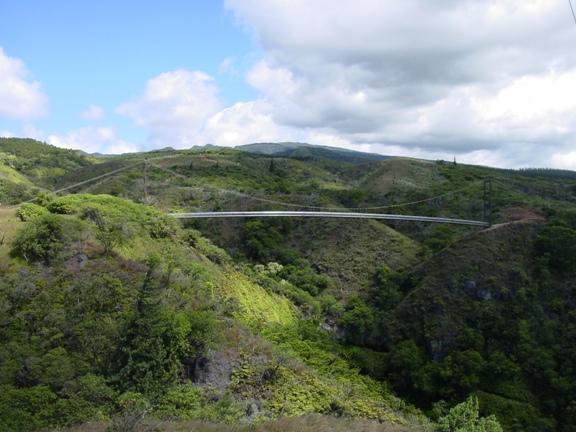

Kapalua Bridge on completion day: 7/14/08.
